PSAV30-ZF/PSAV100-ZF

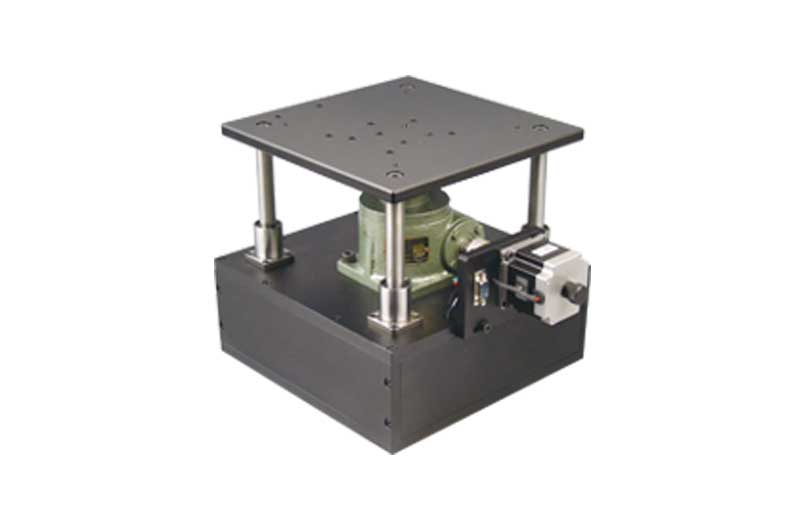

High Precision Motorized Vertical Stages

Inquiry
Download
Details
Model: PSAV
High Precision Motorized Vertical Stages


Application for high-load condition;Max load is 300kg;Motor drive(can choose manual);travel are 30mm,100mm.Welcome to contact us .

special worm gear deceleration system, improve load capacity
◆larger size,fix large size sample by adding install base
◆trapzoid with self-lock funtion please donot worry about out of power or load capacity fall out
◆4 pieces linear guides,ensure smoothly when up and down
◆strict assemble craft and test method,ensure product peformance

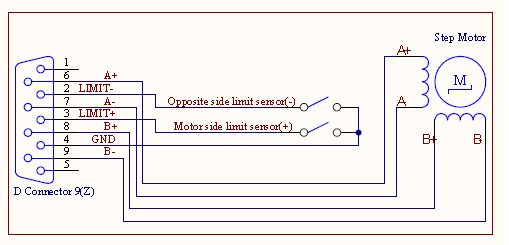

◆stepper motor and DB9 interface,choose controller more flexibility
◆switches ensure safety
◆change motor when need larger load capacity


  Related Products

SC300 Controller

Diagram



Model PSAV30-ZF PSAV100-ZF
Price(USD) 1133 1217
Table Size(mm) 238x238 238x238
Min Height(mm) 238 308
Travel  (mm) 30 100
Screw Pitch(mm) 4
Resolution of 8 sub-division 0.24
Worm Gear Ration 21:2
Max Speed(mm/sec) 3.8
Stepper Motor (angle) 57(1.8°)
Load Capacity(Kg) 80
