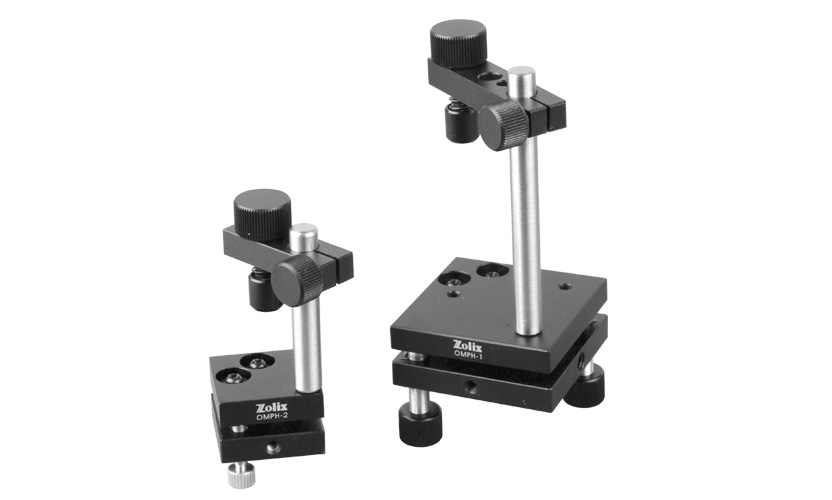

Model: OMPH-1/2
Prism Mount, 60mm Max Diameter,±5 °
Details&Spec:
Can be used to two dimensional tilt adjustment ,the fine teeth screw drive,disc spring reset,high precision,excellent stability. flexible clamping device, convenient and reliable. Continuously adjustable height card installed applicability.

Model	OMPH-1	OMPH-2
Price(USD)	30	30
Height (mm)	60(max)	30(max)
Table size (mm)	50x50	30x30
Adjustable range θx,：θy	±5°	±5°
Screw	M6X0.25	M4X0.3
Weight	0.2	0.18
