Product Name:Ultra-High Stability Optical Mount

Model: OMUS

Supplier: Zolix


Model :OMUS

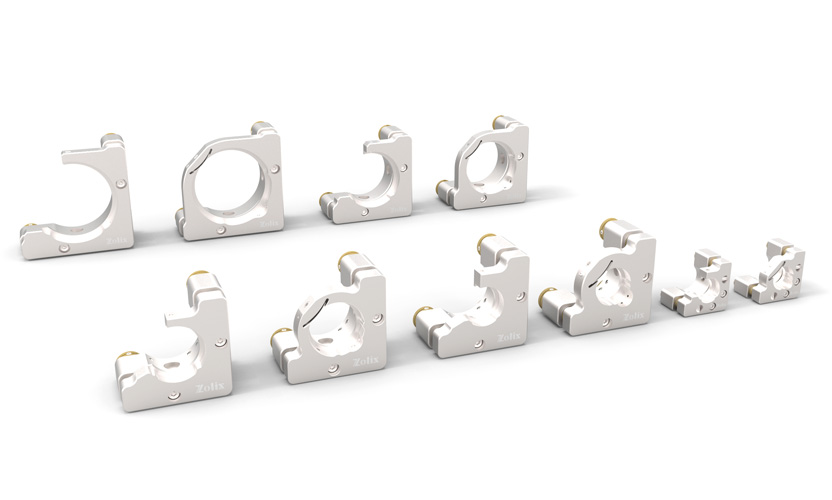

Ultra-High Stability Optical Mount






OMUS25.4


OMUS25.4-B
Specification:

Material:  304 Stainless Steel ;It can be used in vacuum if change to vacuum grease;

Fine adjustment screw with lockable function,improve stability and sensitivity;

Double method of fixing optics: screw fix and ring fix; The screw can fix optics stability even thoug moving ring;

Double lockable function: Screw with lockable function and front&rear plate with lockable function;

Adjustment: Screw with allen-key and customer can adjust it freely by allen wrench or screw;

The thickness of rear plate is 18mm; It ensure stability of mount;

Selection Guide:

ModelPrice(USD)Anlge(degree)Diameter(mm)Aperture Diameter(mm)Center height(mm)Screw
OMUS12.792±312.5/12.71112.5M4
OMUS12.7-B92
OMUS20100201825
OMUS20-B100
OMUS25.410025/25.423
OMUS25.4-B10038
OMUS50.8-B11750/50.848
Related Products



Price
ModelPrice(USD)
OMUS12.792
OMUS12.7-B92
OMUS20100
OMUS20-B100
OMUS25.4100
OMUS25.4-B100
OMUS50.8-B117
