RTS-Mini

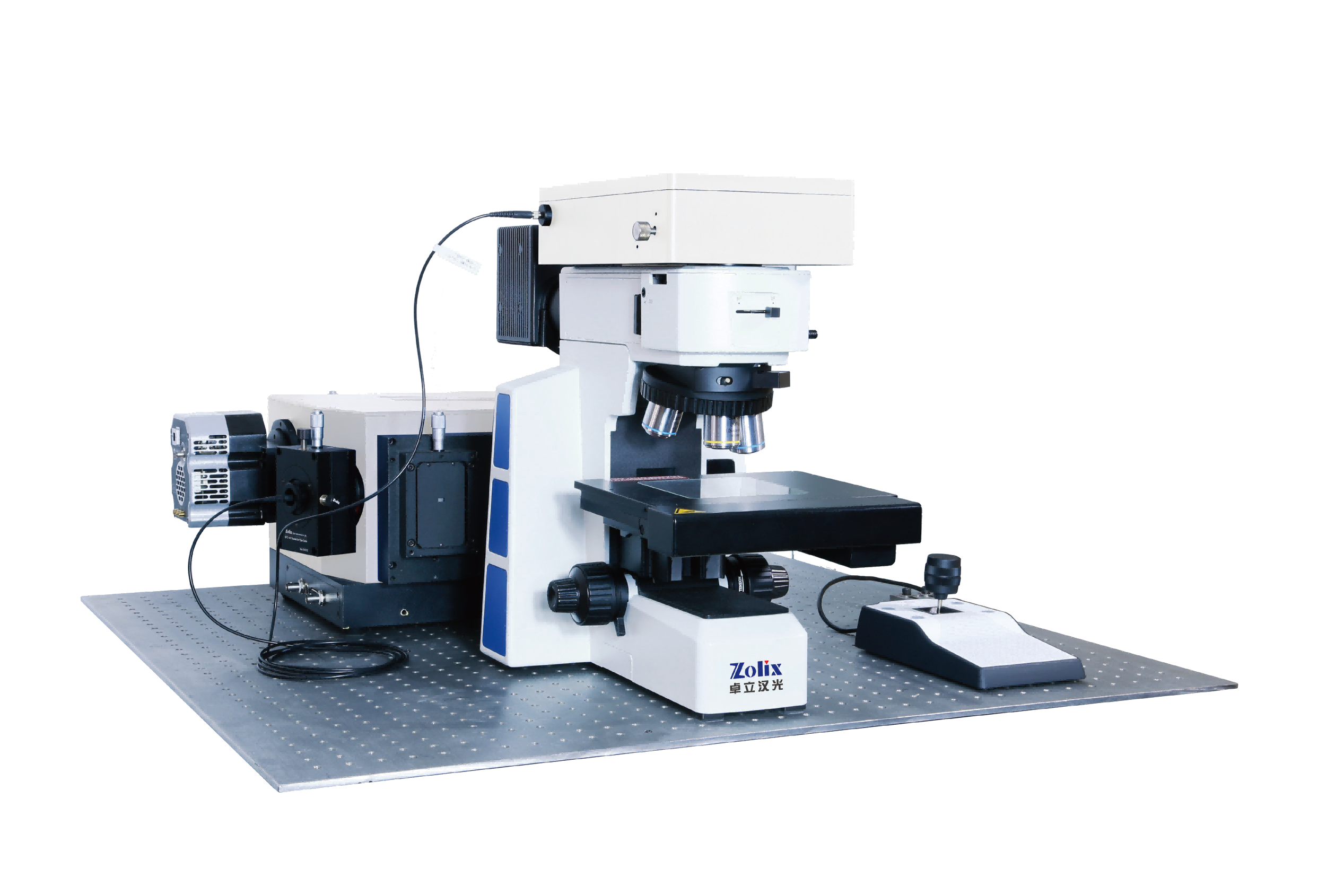

Confocal Raman System RTS-Mini

RTS-Mini confocal Raman System is fully suited to micro measurement and supply mapping function; It is very compact & easy to be integrated with most upright microscopes; If the users have upright microscopes or without microscopes, both we can supply solution; It is an ideal instrument for research and industry offering high quality and reliable data.




Inquiry
Download
Details

RTS-Mini confocal Raman System is fully suited to micro measurement and supply mapping function; It is very compact & easy to be integrated with most upright microscopes; If the users have upright microscopes or without microscopes, both we can supply solution; The flexibility ensure range of options to suit all budgets and different applications;

Confocal Raman System provided by RTS-Mini is a non-destructive technique with minimum sample preparation required. The sample are extensive materials such as polymer, ceramic and nanomaterials as 2D materials: graphene or monolayer of MoS2 etc. Some biological samples like blood, tissue and cell are suitable for Raman measurement by certain laser excitation wavelength;

Raman is an ideal technique for research and industry offering high quality data, reliability, versatility over other analytical techniques. Benefits not only include the range of samples that are suitable for analysis, but also the information content that is provided.


 The main applications

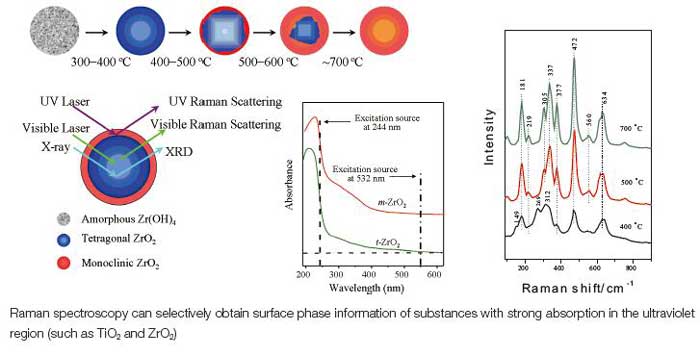

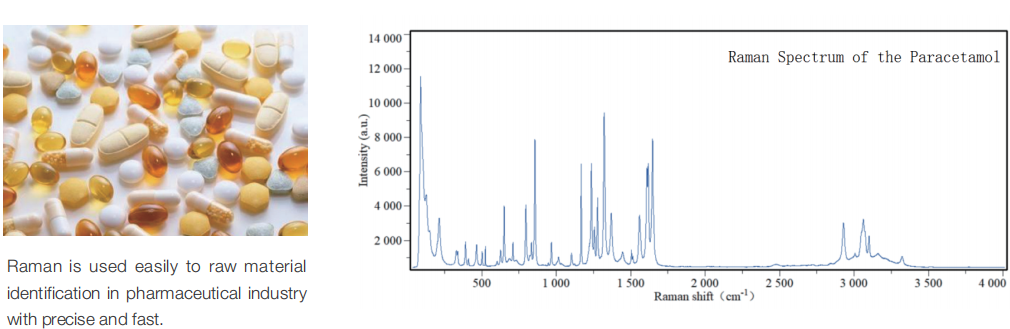

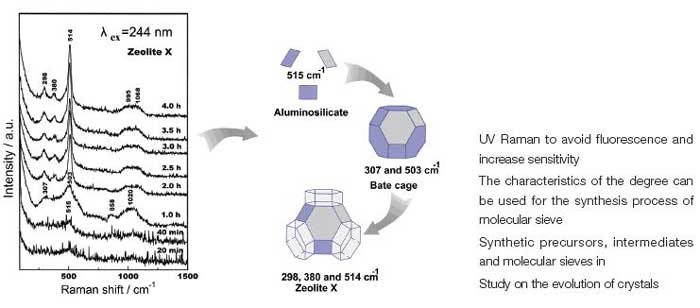

Applications Examples:

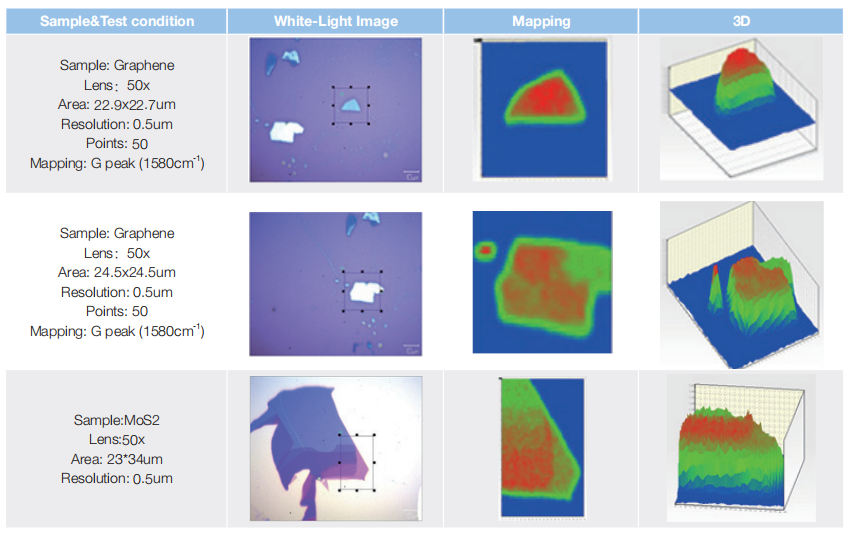

Raman Mapping:

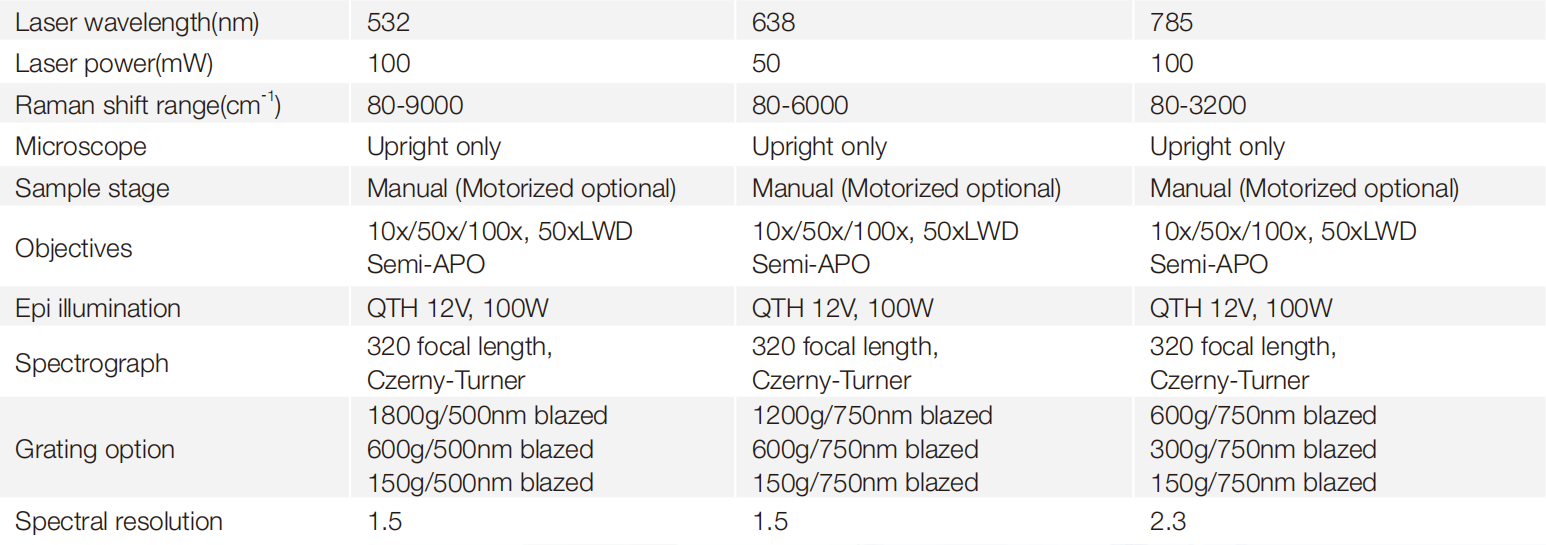

System Specification:

 Laser wavelength(nm)

532

Laser power(mW)

100

Raman shift range(cm-1)

80-9000

Microscope

Upright only

Sample stage

Manual (Motorized optional)

Objectives

10x/50x/100x, 50xLWD

Semi-APO

Epi illumination

QTH 12V, 100W

Spectrograph

320 focal length, Czerny-Turner

Grating option

1800g/500nm blazed

600g/500nm blazed

150g/500nm blazed

Spectral resolution@1702cm-1

1.5

Spectral CCD format

2000x256

Back-illuminated

Deep-depletion

15x15um pixel size

TE cooling to -60°

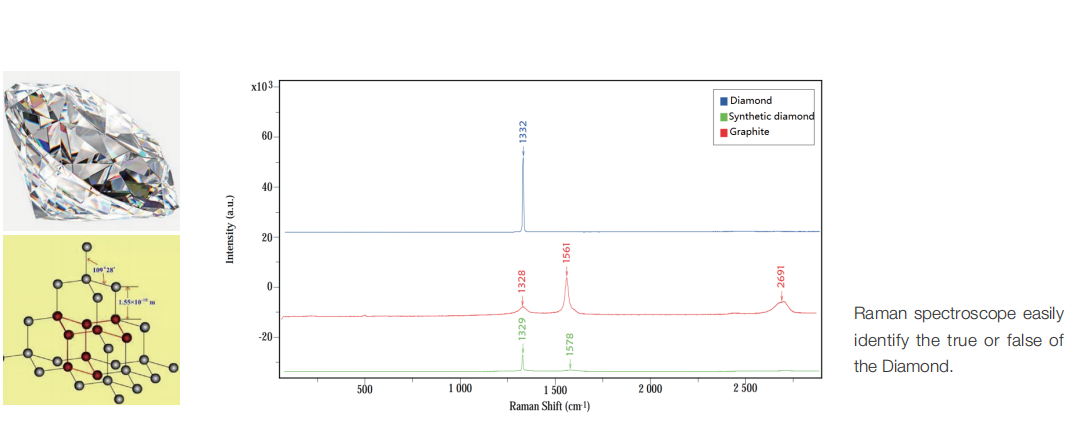

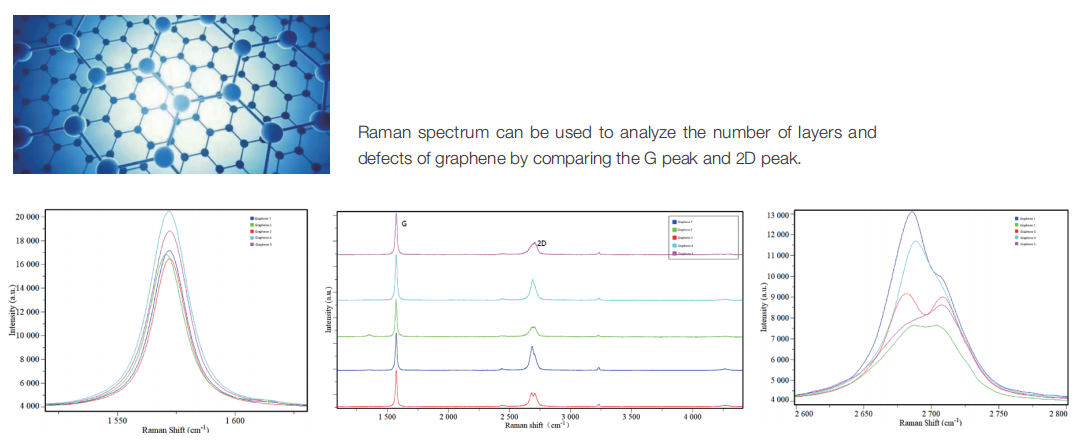

Applications Examples:

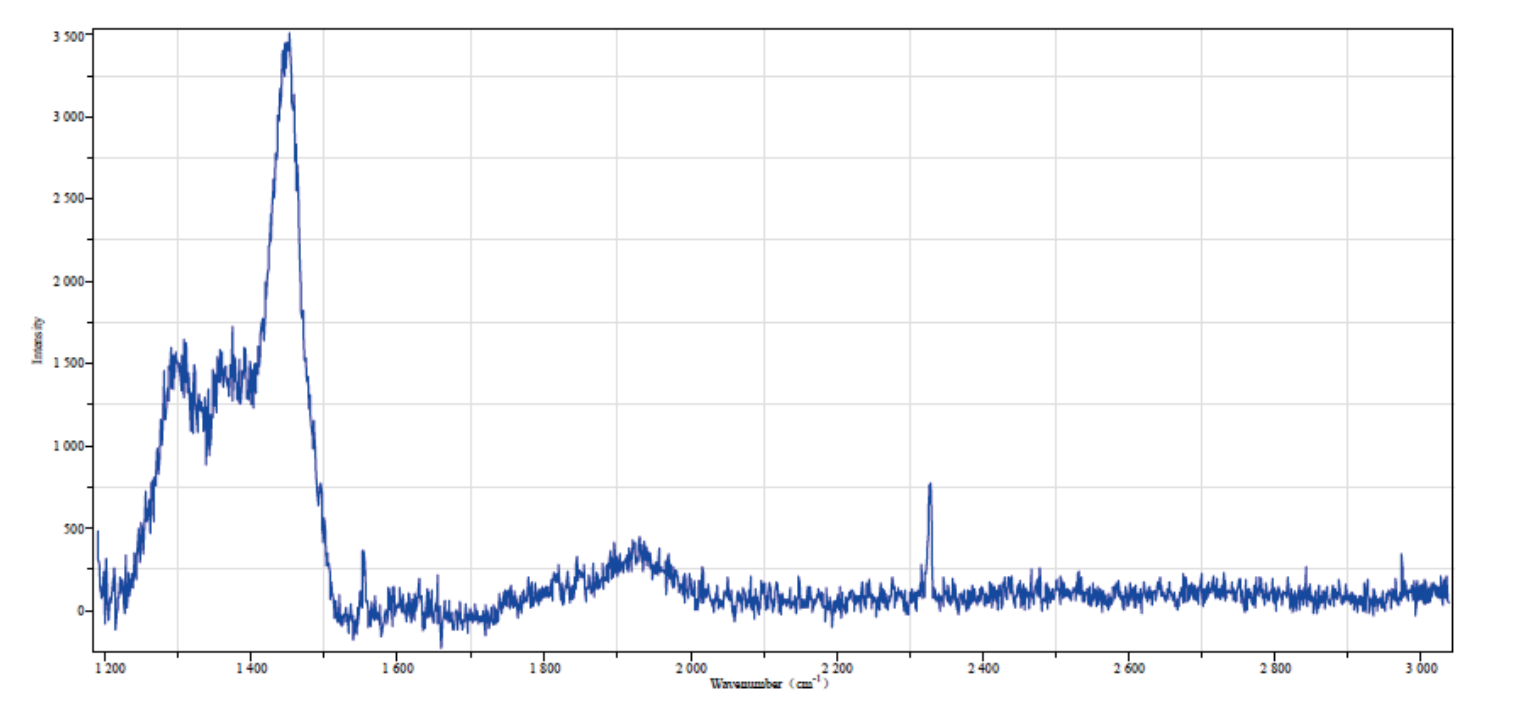

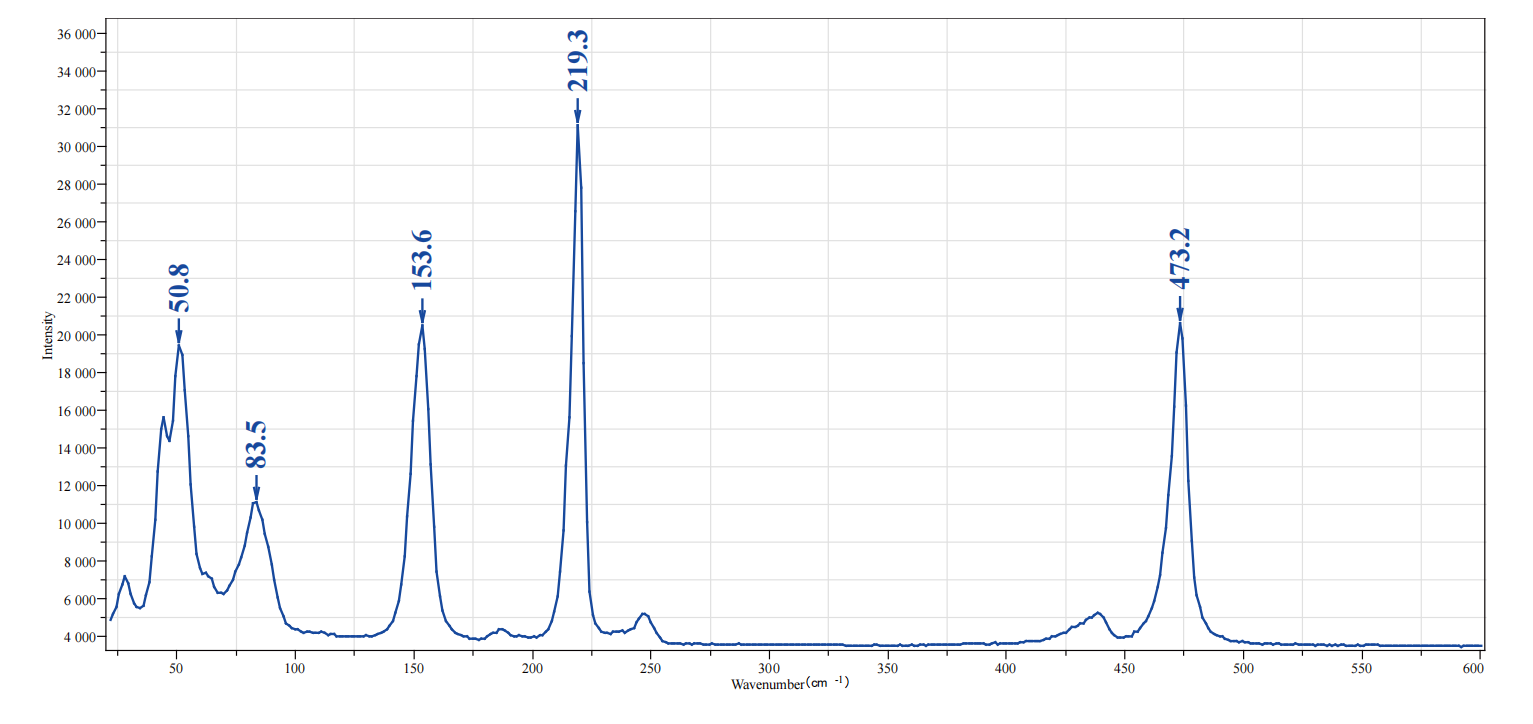

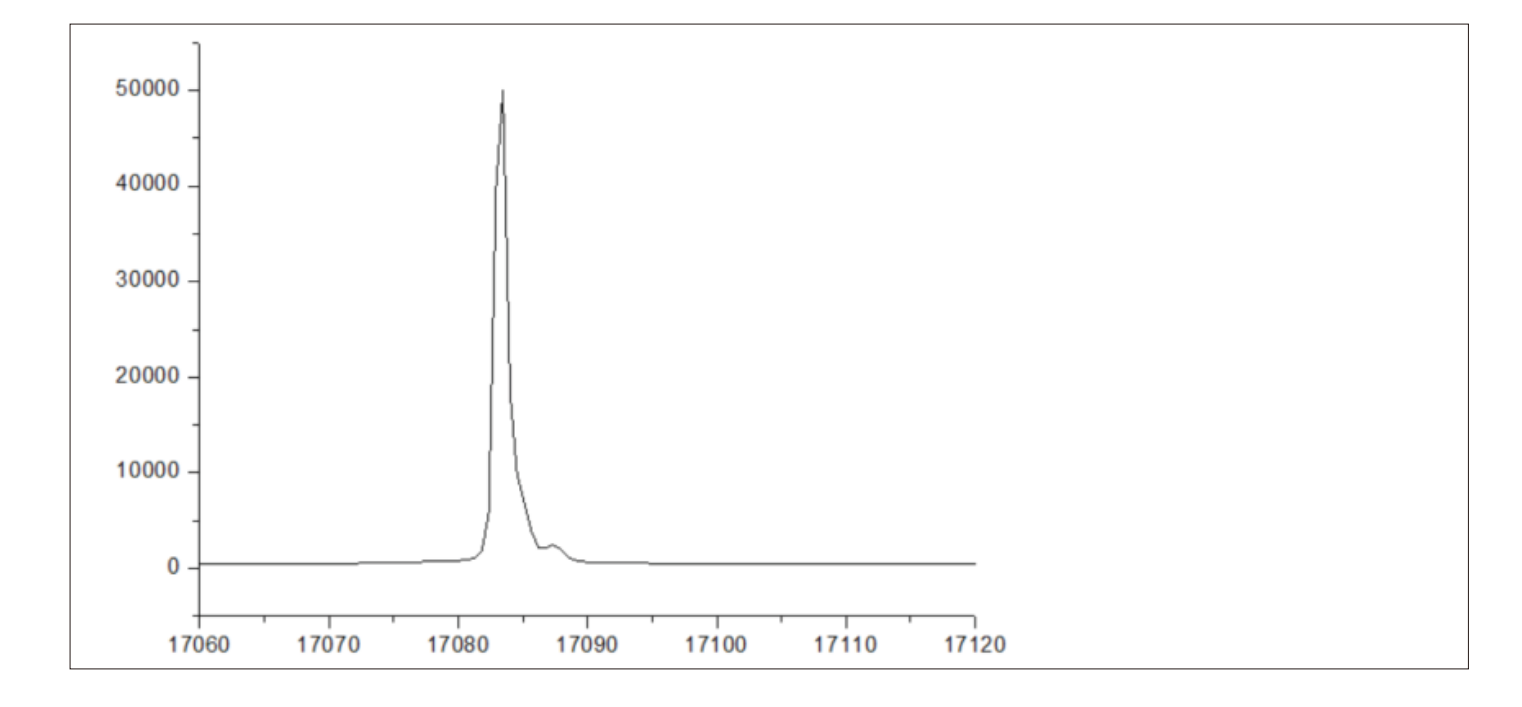

System Performance:
