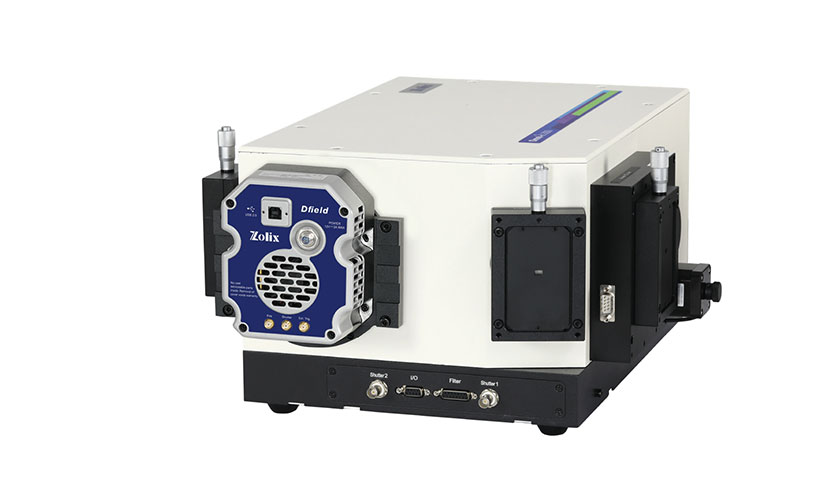

Omni-λ3008i-DFieldN

Ultra-high performance scientific research CCD spectrograph

PPerfect integration of high resolution spectromator and TE-cooled deeply CCD

Inquiry

Details

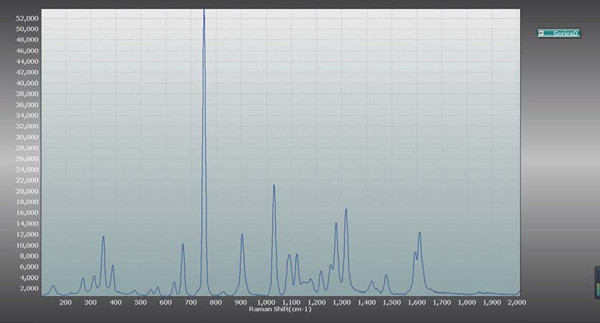

Application: Fluorescence spectrum/ Raman spectrum/ Emission spectrum

Features

■ Outstanding spectral image calibration;

■ Extremely high wavelength accuracy;

■ excellent stray light suppression;

■ Featuring spectrum connection, the spectrometer can achieve not only wide spectrum range but also high resolution.

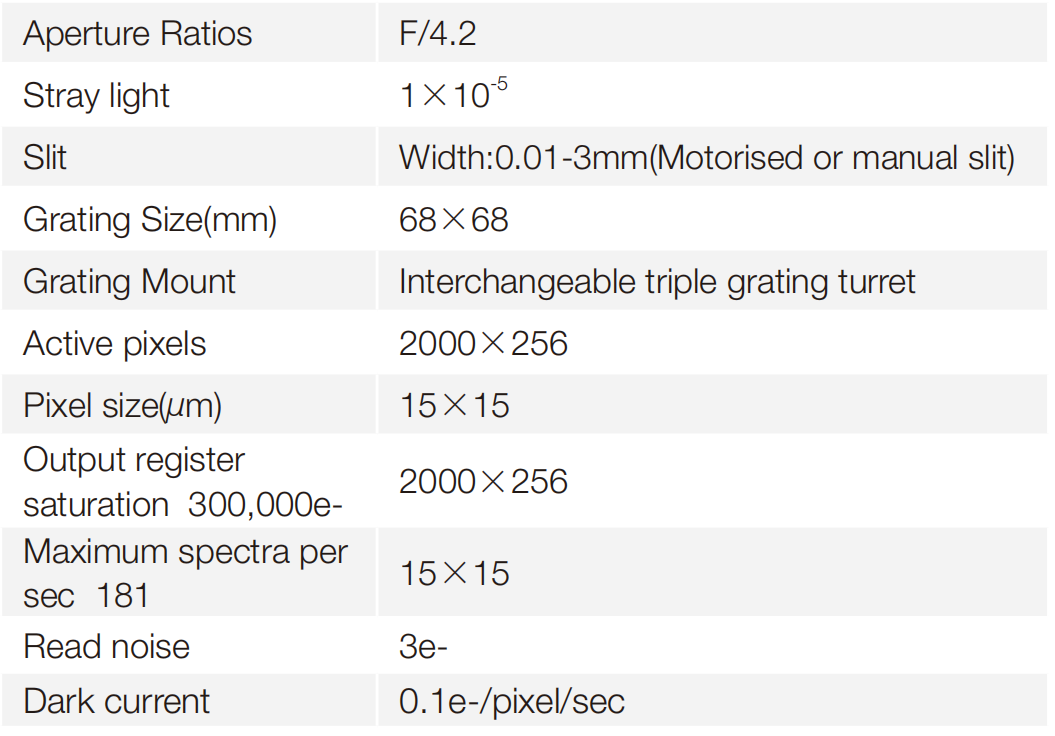

Specifications

■ Permanent vacuum integrity, critical for deep cooling(-60℃@ ambient temperature of up to 25℃)

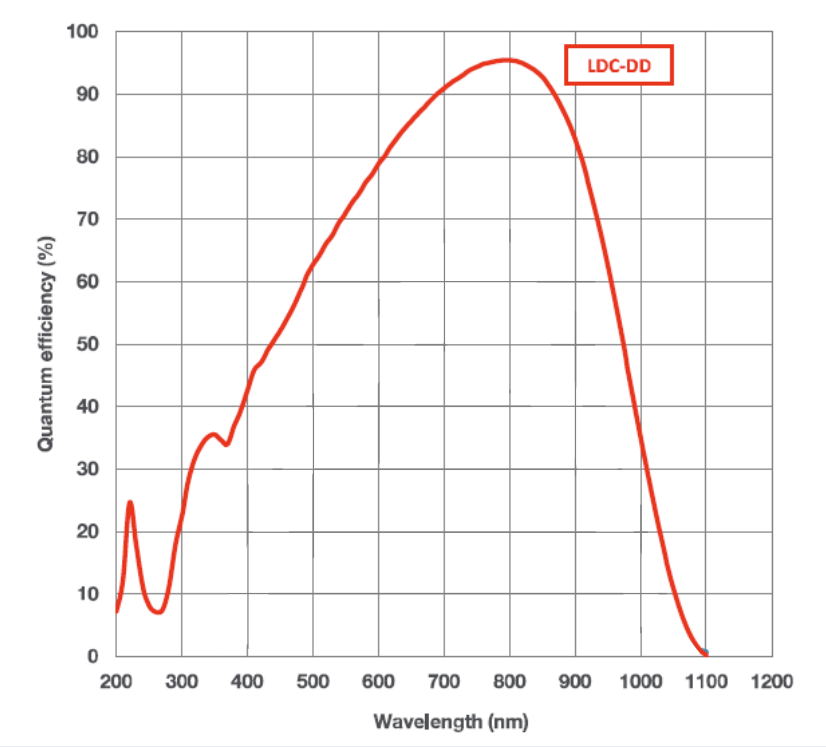

■ Peak QE up to 95%@780nm

■ Greater band-pass capture in 1 single shot(30mm wide sensor)

■ High resolution 15μm pixel format

■ 10x lower dark current for low dark current deep-depletion, LDC-DD compared with traditional back illuminated deep-depletion BI-DD sensors

■ Single window design, delivers maximum photon throughput

■ Simple USB2.0 connection
