Ambient Temperature · LS35x.Lab.O / .R Piezo-Linear Stage

• Ultra quiet motion, 20 kHz drive frequency
• 35 × 35 mm × 12 mm Extremely compact form factor
• closed-loop control · Position sensing supports resistance type(.R) and optical type(O.)
• Economy - Spatial Sensing Resolution(.R) 100-200nm
• Minimum pace better than 10 nm
• Multi-axis stacking mount adapters available
• High Resolution - Spatial sensing resolution (.O) 1 nm, 10 nm selectable
• Supports non-magnetic (.NM), high vacuum (.HV) and ultra-high vacuum (.UHV) options
Inquiry
Download
Details
Piezoelectric · Linear Motion— LS35x.Lab.O / .R (closed-loop)
Piezoelectric motion@RT solutions — “.Lab Series“ Well packaged piezoelectric motion unit
Piezo-Linear Stage with compact shape and no compromise on power performance; while guaranteeing a premium price space.
Ambient Temperature · LS35x.Lab.O / .R Piezo-Linear Stage
Product Features
• Ultra quiet motion, 20 kHz drive frequency
• 35 × 35 mm × 12 mm Extremely compact form factor
• closed-loop control · Position sensing supports resistance type(.R) and optical type(O.)
• Economy - Spatial Sensing Resolution(.R) 100-200nm
• Minimum pace better than 10 nm
• Multi-axis stacking mount adapters available
• High Resolution - Spatial sensing resolution (.O) 1 nm, 10 nm selectable
• Supports non-magnetic (.NM), high vacuum (.HV) and ultra-high vacuum (.UHV) options

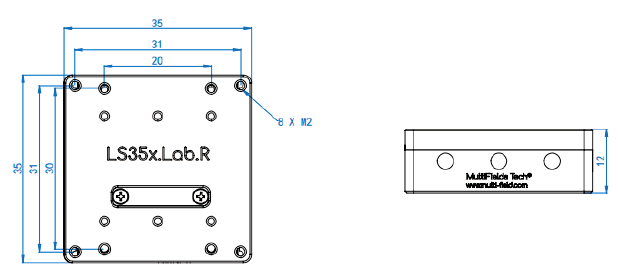

2D - Dimensional drawing
LS35x.Lab.O / .R Piezo-Linear Stage — Specification-1


Optional Versions ⇨

Default

.NM

.HV

.UHV



.NM,  Absolutely non-magnetic version;

.HV,   High vacuum version;

.UHV, Ultra high vacuum version;

1         Bottom size*height

35 × 35 mm × 12 mm

2         Main Material

Stainless Steel

Pure Ti

Stainless Steel

Stainless Steel

3         Cables & Connectors

Standard shielded cable

D-Sub 9 Connector

Kapton enameled Wire,

PEEK-2mm Pin

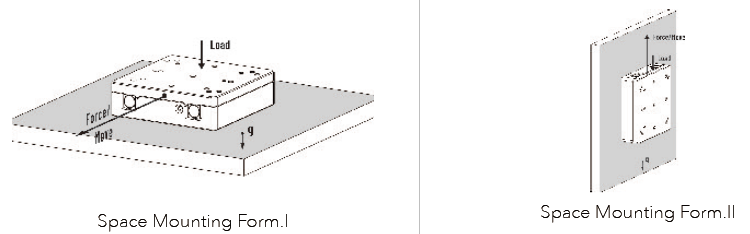

Motion parameters - space recommended mounting form I. (The following properties are measured in the recommended installation form)

4         Travel

20 mm

5         MAX. Velocity

~ 20 mm/s

6         Min. Step

< 10 nm

7         Drive Frequency

Max. 20 kHz (Super quiet movement)

Maximum horizontal

8         force



2 N

9         Holding Force

5 N

10        Full-travel pitch/yaw

0.3 mrad / 0.2 mrad

Motion parameters - space recommended installation form II. (The following properties are measured in the recommended installation form)

11        Maximum vertical load

2 N

12        Holding Force

5 N

Sensing accuracy

13        Position Sensing Type

- Resistance type sensing ( .R )

- Optical scale sensing ( .O )

14        Position sensing range

20 mm

15        Position sensing resolution

- Resistance type sensing ( .R ), 100-200 nm

- Optical scale sensing ( .O ), 10 nm ( default ),1nm ( option )
