Ambient Temperature · AutoScrew.LR Optical Frame Adjuster

Inquiry
Download
Details
Piezoelectric · Linear Motion — AutoScrew.LR
Piezoelectric motion@RT solutions — “AutoScrew Series“ Optical frame adjuster
Piezo-Linear Stage with compact shape and no compromise on power
performance; while guaranteeing a premium price space.
Product Features
• Holding force 100 N, feeding force 20 N.
• Earliest pace 20 nm
• Max. travel 6 mm
• Self-locking at stop, no heat generation
• Threads compatible with standard frame threads
• Controller compatible with MultiFieldsⓇ Motion Controller - Newton Series

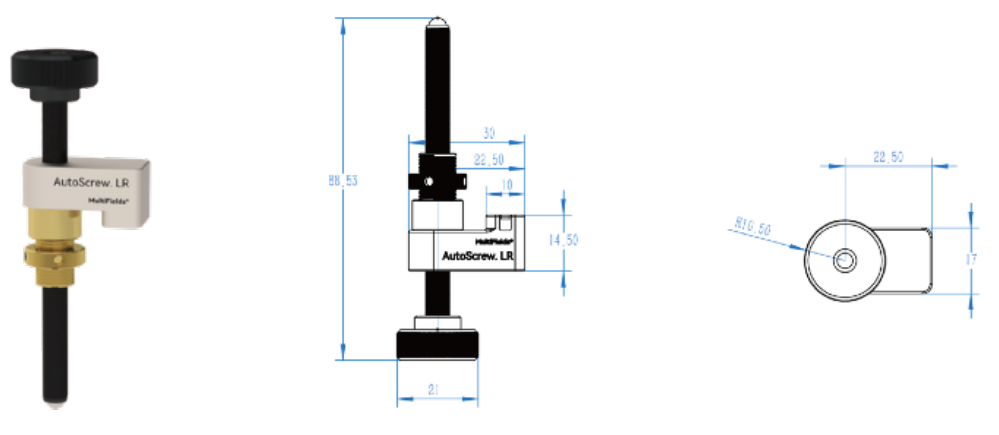

2D - Dimensional drawing

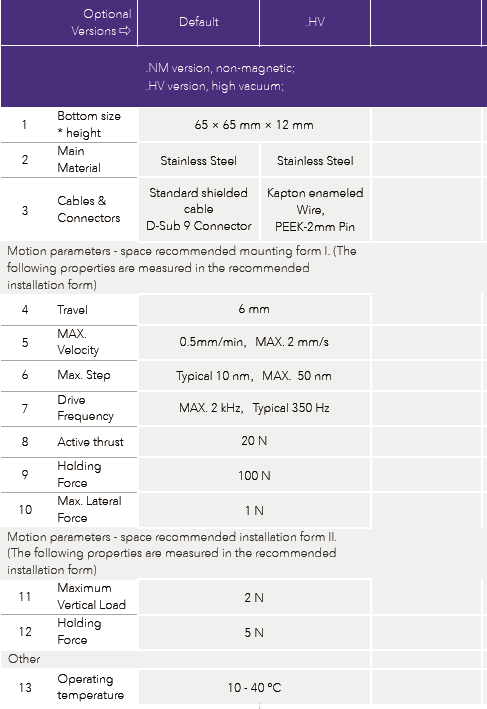

AutoScrew.LR Optical frame adjuster — Specification
