NFP series Crossed-Roller Bearing Linear Stages

Inquiry
Download
Details

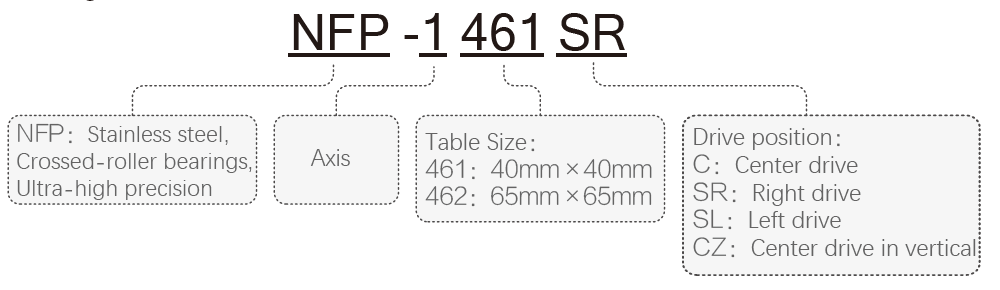

Naming Rules
Selection Table

Model

NFP-1461C

NFP-1461SR

NFP-1461SL

NFP-1461CZ

NFP-1462C

NFP-1462SR

NFP-1462SL

NFP-1462CZ

Travel(mm)

13

25

Table Size(mm)

40×40

65×65

Thickness(mm)

19.5

23±0.1

Bearings

Crossed-roller bearings

Actuators

micrometer

Drive Position

Center

Right

Left

Center of the vertical

Center

Right

Left

Center of the vertical

Sensitivity(µm)

≤1

Straightness (µm)

≤3

Load(Kg)

5

5

5

1.5

7

7

7

2.5

Weight(Kg)

0.28

0.85
