AD series Aluminum Alloy Dovetail Bearings Linear Stages

Inquiry
Download
Details

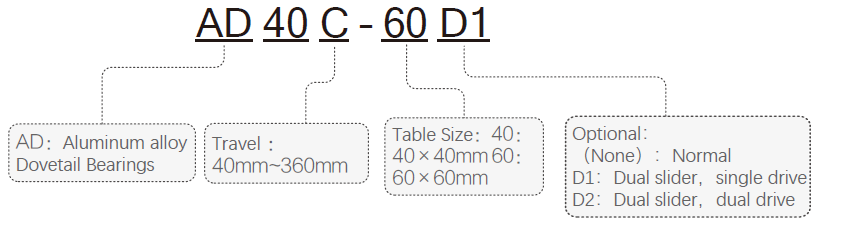

Naming Rules:
Selection Table

Model

AD60C-40

AD160C-40

AD260C-40

AD360C-40

Table Size(mm)

40×40

Thickness(mm)

30

Travel(°)

60

160

260

360

Weight(Kg)

0.25

0.4

0.55

0.7

Load(Kg)

5



Model

AD40C-60

AD140C-60

AD240C-60

AD340C-60

Table Size(mm)

60×60

Thickness(mm)

34

Travel(°)

40

140

240

340

Bearings

Dovetail

Weight(Kg)

0.45

0.7

0.95

1.2

Load(Kg)

6
