Product Name:Triple Monochromator/ Spectrograph

Model:

Supplier: Zolix


 Triple Monochromator/ Spectrograph
Omni-λ 500 Triple Monochromator/ Spectrograph
The Triple Monochromators/Spectrographs include three 500 mm focus monochromators which are with fine alignment. The first two monochromators as the dispersion subtraction are used to reduce the stray light. The third monochromator as dispersion sum configuration is used to improve the resolution. And each unit can work well as the monochromator, and the two unit can also be used as the double monochromator. The first and the second monochromator are the side entrance and double exits, the third monochromator is the double entrances and double exits, it is easy to connect the CCD and PMT, the single channel detectors. There are three import gratings in each monochromator, and the spectral range is located in deep UV region, the middle UV and visible region. Each grating reflectivity can be up to 70% in their spectral region. Mainly used in high grade Raman spectroscopy measurement, such as UV-resonance Raman spectroscopy.

Omni-λ500Triple

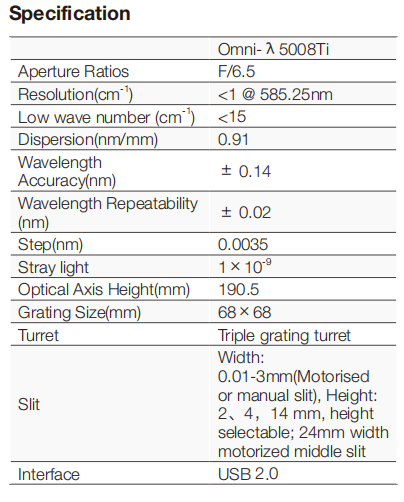

Specification @ 325nm excitation
wavelength



◆ Wavelength range: 200-800nm
◆ Relative wave number range: 50-18000 cm-1
◆ Resolution: 3cm-1
◆ Repeatability: 5cm-1

Gratings specifications for Triple Monochromator/ Spectrograph


Gratin#Line density (g/mm)Blaze wavelength (nm)Size ( mm)
1-1180025068×68
1-2120030068×68
1-360050068×68
2-1180025068×68
2-2120030068×68
2-360050068×68
3-1360025068×68
3-2240030068×68
3-3120050068×68
