Light SourceHome >> Products >> Spectroscopy >> Light Source

Product Name:LED Light Source

Model:

Supplier: zolix


LED Light Source

Application

Photocatalysis, ultraviolet analyzer biological genetic engineering, molecular genetics, medical and health, biological products, pharmaceutical research, health and epidemic prevention, dye chemical industry, petroleum chemical industry, textile industry, etc.



Feature:

· Efficient electro-optic conversion efficiency, energy conservation and environmental protection

· Small volume, convenient to carry, convenient for system integration
· Digital switch control, remote communication control, 1-100% light intensity adjustment
· Set work plan for exposure time and light intensity.

LED order information


ModelWavelengthOutput PowerIop (mA)ModelWavelengthOutput PowerIop(mA)
M265L265nm50­W20M620L620nm>240mW700
M280L280nm50­W20M635L635nm>320mW700
M310L310nm50­W20M660L660nm>280mW350
M365L365nm>420mW700M690L690nm>240mW350
M395L395nm>450mW700M710L710nm>200mW350
M405L405nm>400 mW700M735L735nm>80mW350
M425L425nm>280mW700M760L760nm>50mW350
M450L450nm>320mW700M808L808nm>80mW350
M470L470nm>240mW700M850L850nm>80mW350
M515L515nm>180mW700M880L880nm>150mW350
M525L525nm>180mW700M900L900nm>110mW350
M550L550nm>200mW700M940L940nm>50mW350
M560L560nm>150mW700M980L980nm>50mW350
M590L590nm>80mW700M1020L1020nm>50mW350

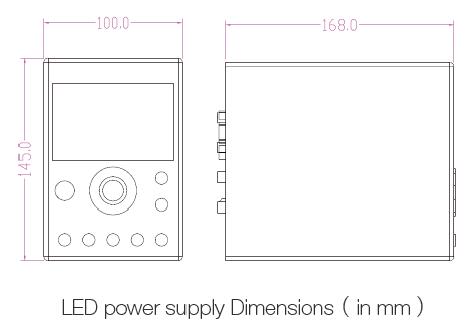

LED power supply order information

ModelMLED4-1MLED4-2MLED4-3MLED4-4MLED4-5
CH1(output current mA)70020202020
CH2(output current mA)70070070070020
CH3(output current mA)700700700350350
CH4(output current mA)700700350350350
Radiation modeFixed irradiation: irradiation power (0-100%) adjusted (adjusting the duty ratio), modulation switch frequency 120 Hz, the irradiation time can be set maximum 9999.9 s, long time exposure can be realized by manual control.
Control modeManual control, Digital signal control(turn on, turn off), RS232 control (turn on, turn off)
CoolingFan
Power supplyInput AC 110V~220V, output DC12~4A
Environmental temperatureWorking temperature: +5~+35℃,storage temperature: -10~+55℃
Environmental humidityWorking/Storage: RH 20~80%
Weight1.5kg

LED holder order information

ModelMLED-POST1MLED-POST2MLED-POST3MLED-POST4
LED number1234

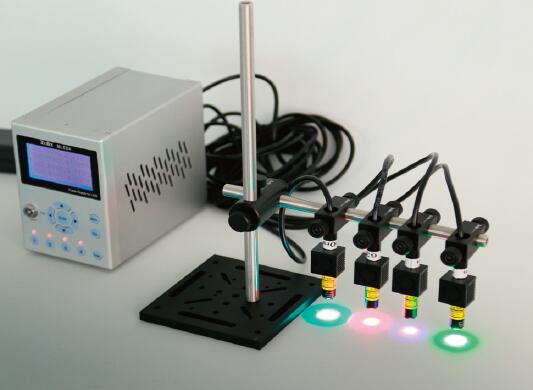

LED holder can fix the LED conveniently, and the height( up to 200 mm), direction are adjustable. The MLED-POST1, MLED-POST2, MLED-POST3, MLED-POST4, It can fix one to four LED at the same time respectively.
