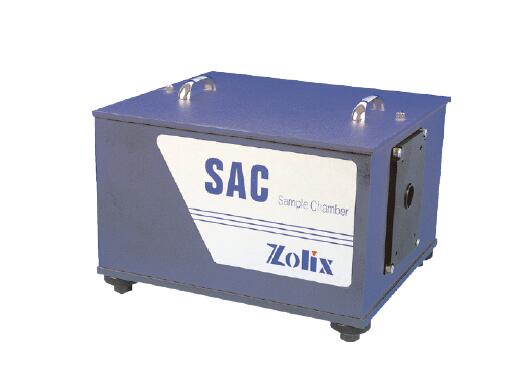

SAC three-port sample chamber

· SAC is a three-port sample champer, which can be easily configured for transmittance, reflectance, absorbance, fluorescence or Raman measurements.
· The SAC is compatible with the range of Zolix monochromators and spectrographs.

· All quartz lenses for excellent transmission in the spectral range 200 nm to 2.5 m.

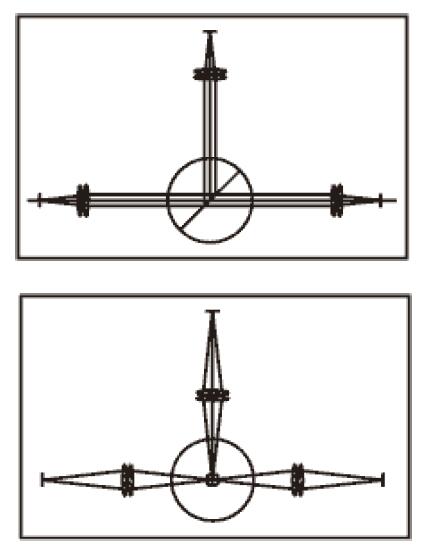

· Each quartz lens unit can be individually adjusted to provide either a collimated or focused beam depending upon the sample and application requirements. The collimated beam can be used for interference filter testing, transmittance, reflectance, absorbance of colored glass. The focused beam can be used for transmittance, reflectance, absorbance, density and concentration of gas/liquid.
· The sample holder comprises of an XY and rotation stage which allows critical alignment and rotation of the sample to be performed in order to optimise the recorded signal. XY translation of 10 mm in both axes and rotation of 360°is possible.
· Standard sample holder is SAC-SH01, which can hold sheet solid and liquid(need cuvette).

Specifications：

	SAC
Wavelength Range	200-2500 nm
Amount of The Light Exit	3
Amount of Lens	3
Adjusting Range of the Height	213-243 mm
Weight	10 kg

Order information:

Model	Description
SAC	Sample chamber with standard quartz lens(SAC-Lens01) and standard sample holder (SAC-SH01), 200-2500nm.
SAC-Lens02	CaF2 IR lens with spectral range 0.2-8m.
SAC-SH02	Solid powder sample holder
SAC-SH03	Cuvette holder, can support thickness≤12.4mm, width 12.4mm
SAC-FM	Filter holder for Φ25mm filter
