Product Name:Ultra- Precision Linear Stages

Model: uKSA50/100/150/200

Supplier: Zolix



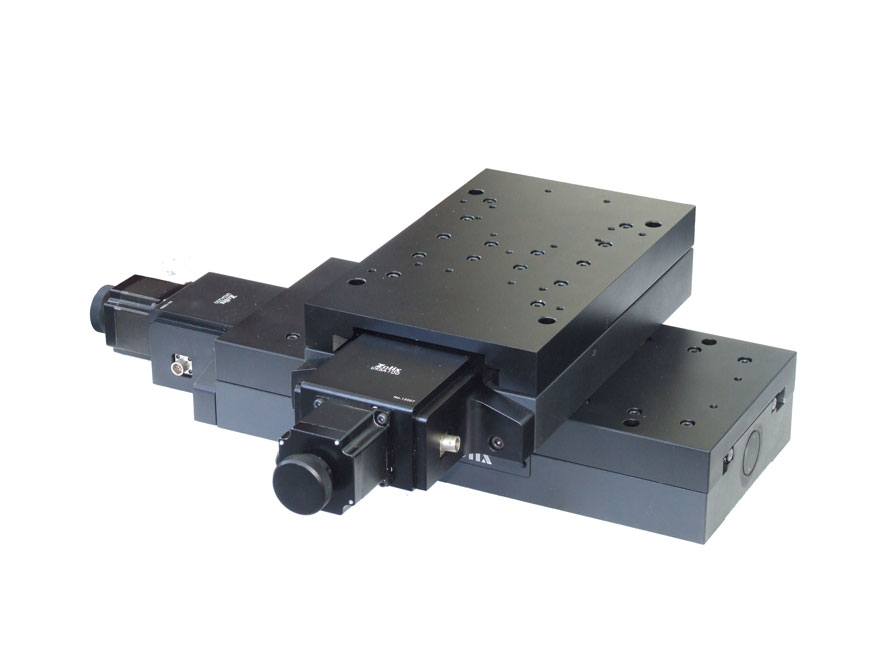

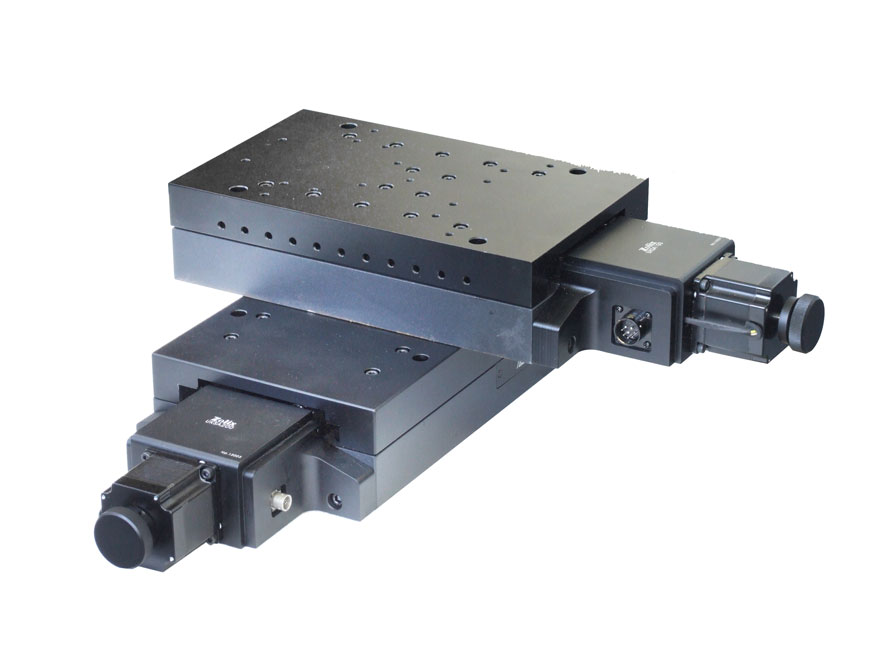

Model: uKSA Ultra- Precision Linear Stages

■uKSA series ultra-high precision motorized translation stage,includes travels are below: 50,100,150,200mm;It is our new product, specification is international standards: for example: closed-loop resolution is 0.1μm,straightness and parallel during whole travel is less than 6μm,,yaw,pitch is less than 15〞.Application:ultra-high precision fileds;for example: ultra-high precision laser marking,laser scanning measurement.
Characteristic:

  • import ultra-precision grating internal, closed-loop resolution is 0.1μm in conjunction with MC600 controller
  • import ultra-high level balll screw,achieve high position
  • import ultra-high level cross roller rail, ensure straightness,parallel,yaw,pitch and related specification in conjunction with zolix special precision grinding craft(including Al base precision grind)
  • assemble craft and test method that higher international, ensure all the products performance
  • closed dust-cover, suit for any condition
  • planning servo-motor of this series



ModeluKSA50uKSA100uKSA150uKSA200
Price(USD)3667416746675167
Travel(mm)50100150200
Pitch(mm)4
Motor ModelFHB366-D(three phase stepper motor)
Resolution(um)Closed-loop resolution  0.1um
Max speed(mm/s)40
Repeatability(um)<2
Backlash(um)<1
Straightness(um)<6<10
Parallism(um)
Weight(Kg)15182225
Load30

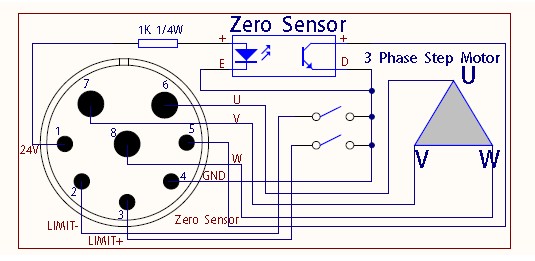

  Motor Diagram


Grating Diagram

Related ProductsApplication


MC6003P Controller




ModeluKSA50uKSA100uKSA150uKSA200
Price(USD)3667416746675167
