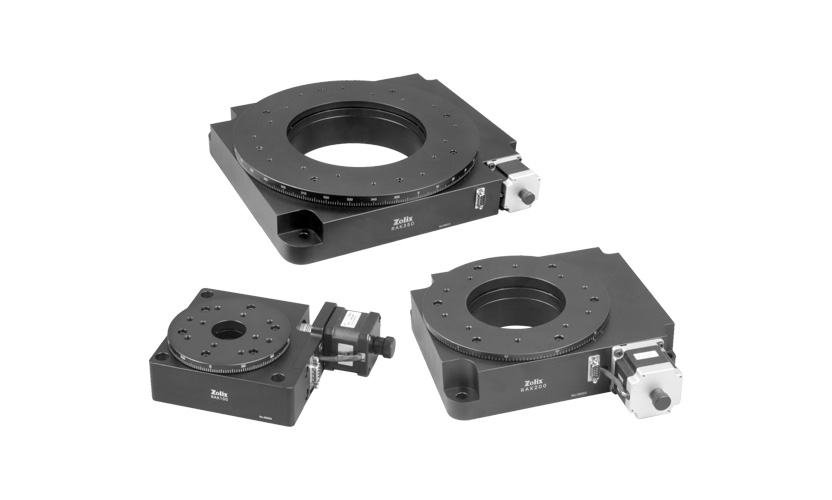

High Precision Motorized Rotation Stages

Details&Spec

Details

Model: RAK
High Precision Motorized Rotation Stages

New construction ,new technology;the key index has up to the international level of the similar products by strictly inspection .This series products are used to laser precision processing,three dimensional scanning measurment system and so on .
◆Stepper motor drive ,finish angle adjustment automatically;
◆Worm and worm wheel has adopted durable to friction material ,high reliable accuracy of rotation .
◆High precision ,ultra steel axises of importing ,achieve high precision, high load stable motion
◆Outer circle has scale, interface , convenience for signal’s output
◆Circle grating and encoder combine with MC series controller ,achieve closed-loop control
Standard stepper motor and DB9 interface, choose to controller flexibility
◆three phase stepper motor and servo-motor is planning

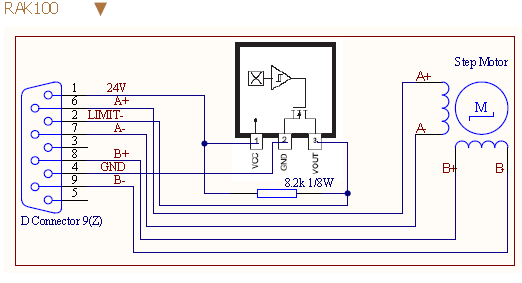

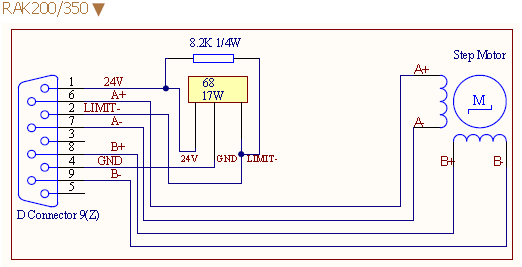

Diagram

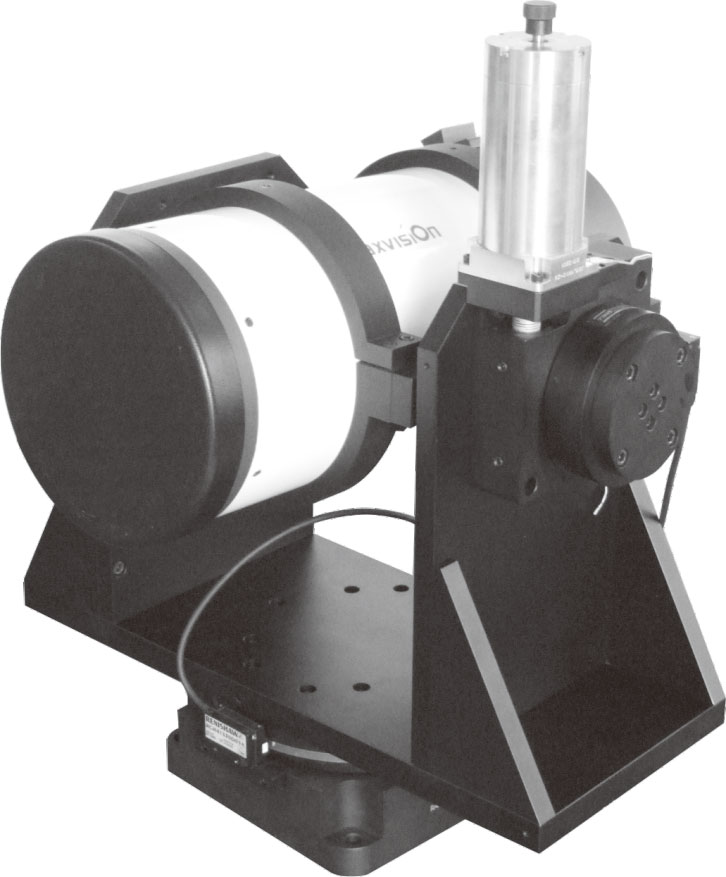

Related Products		Application
	SC300 Controller

Model	RAK100	RAK200	RAK350
Price(USD)	967	2500	4167
Worm Gear Ratio	180:1
Material	AL
Stepper Motor	42(1.8°）	57(1.8°）
Max. Center Load	30 kg	50 kg	100 kg
Resolution	0.00125°	0.00125°	0.0007°
Repeatability	0.005°	0.005°	0.003°
Radial Runout	<15 um	<10 um	<20 um
Axial runout	<15 um	<10 um	<20 um
Max. Speed	25° /Sec.	25° /Sec.	14° /Sec.
Current (A)	1.7	2.4
