Cylindrical Laser Mount, 60mm Max Diameter, High-Resolution Adjusters

Model: PHLM-1
Cylindrical Laser Mount, 60mm Max Diameter, High-Resolution Adjusters
Price: USD65

Details&Spec:
Diameter :5- 60mm
Range :θy,θx:±5 degree
Weight: 0.8kg
Length: Min 200mm

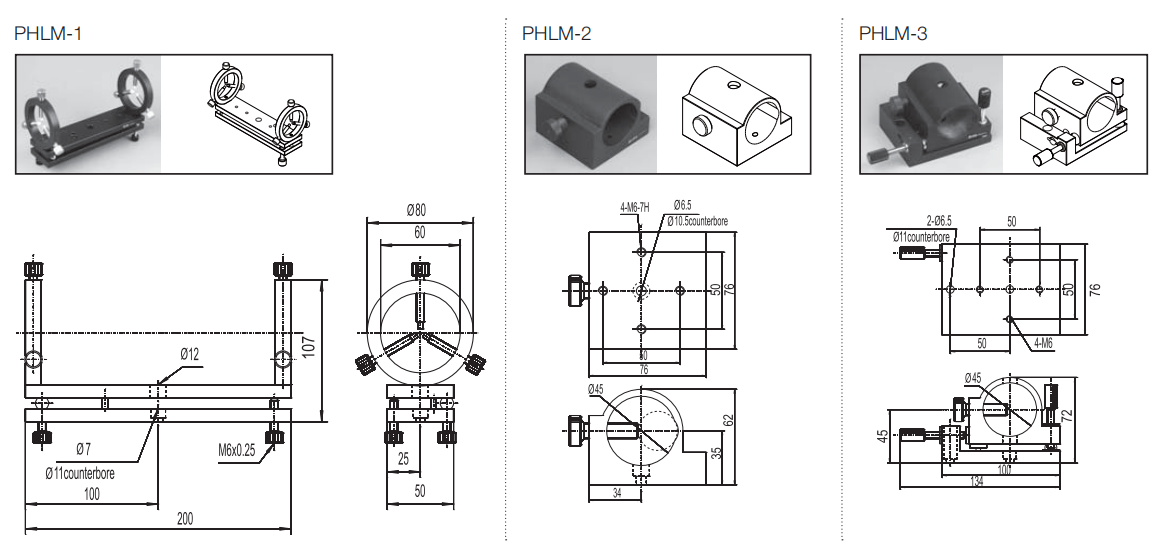

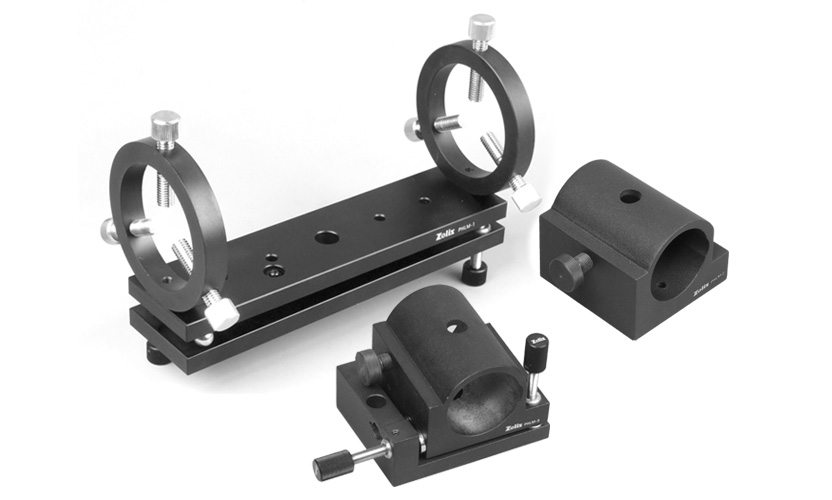

Hene laser is very important in experiment as the light source light path.flexible adjustment ,long time stability is the fitst step ,our company provide three typle laser mounts
Laser mounts optical axis as x axis,PHLM-1 make the laser mounts tilt adjustment along x y ,grasp the different diameter laser mounts or cylinders,adjustable center, grasp adopt PTFE material,stable and not damage laser mounts.ultra-fine teeth screw drive of adjustment contructure,disc spring reset,presitional adjsutment,excelent stablity ,adjustment range between supporters,meet to the different inquiries
Compare with PHLM-2,PHLM-3 increase adjustment functions along y z axis. ultra-fine teeth screw drive of adjustment constructure,disc spring reset,Iinner hole relative lock tight screw position has concave groove,this is the same with phlm-2,stable and repeatabily .lock tight screw of un-metal material protect laser mounts
