ZTP Series Pneumatic Vibration Isolation Optical Table

Inquiry

Product Manuals

Details&Spec

Details

Specification：

Resonant Frequency ＜1.5~3Hz
Surface Flatness: 0.02~0.05mm/600mm×600mm
Working Surface: 4~6mm thick SUS430(1Cr17) stainless steel
Bottom Skin: 4~6mm thick carbon steel,
Thickness: 100/200/300mm, please refer to datasheet
Total Height( table top and supports):800mm，Height Adjustment：-10~+15mm
Mounting Hole Grid:：25mm×25mm
Mounting Hole Borders：37.5mm
Mounting Holes：M6
Weight：100mm thickness：120Kg/m2

200mm thickness：140Kg/m2

300mm thickness：167Kg/m2

Selection Table：

Model	Size(mm)	Thickness(mm)	Tabletop Weight(Kg)	Table Feet Area(mm)	Supports Load(Kg)	Notes
ZTP09-06	900×600×800	100	65	120×120	400	4 legs
ZTP10-08	1000×800×800	100	96	120×120	400	4 legs
ZTP12-06	1200×600×800	100	86	120×120	400	4 legs
ZTP12-08	1200×800×800	100	115	120×120	400	4 legs
ZTP12-09	1200×900×800	100	130	120×120	400	4 legs
ZTP12-10	1200×1000×800	100	144	120×120	400	4 legs
ZTP12-12	1200×1200×800	100	173	120×120	400	4 legs
ZTP15-09N	1500×900×800	100	189	160×160	600	4 legs
ZTP15-10N	1500×1000×800	100	210	160×160	600	4 legs
ZTP15-12N	1500×1200×800	100	252	160×160	600	4 legs
ZTP15-15N	1500×1500×800	100	315	160×160	600	4 legs
ZTP18-09	1800×900×800	200	227	160×160	800	4 legs
ZTP18-10	1800×1000×800	200	252	160×160	800	4 legs
ZTP18-12	1800×1200×800	200	302	160×160	800	4 legs
ZTP18-15	1800×1500×800	200	378	160×160	800	4 legs
ZTP20-10	2000×1000×800	200	280	160×160	800	4 legs
ZTP20-12	2000×1200×800	200	336	160×160	800	4 legs
ZTP20-15	2000×1500×800	200	420	160×160	800	4 legs
ZTP24-12	2400×1200×800	200	403	160×160	800	4 legs
ZTP24-15	2400×1500×800	200	504	160×160	800	4 legs
ZTP24-18	2400×1800×800	200	605	160×160	800	4 legs
ZTP30-12	3000×1200×800	300	601	160×160	1200	6 legs
ZTP30-15	3000×1500×800	300	752	160×160	1200	6 legs
ZTP35-12	3500×1200×800	300	701	160×160	1200	6 legs
ZTP35-15	3500×1500×800	300	877	160×160	1200	6 legs

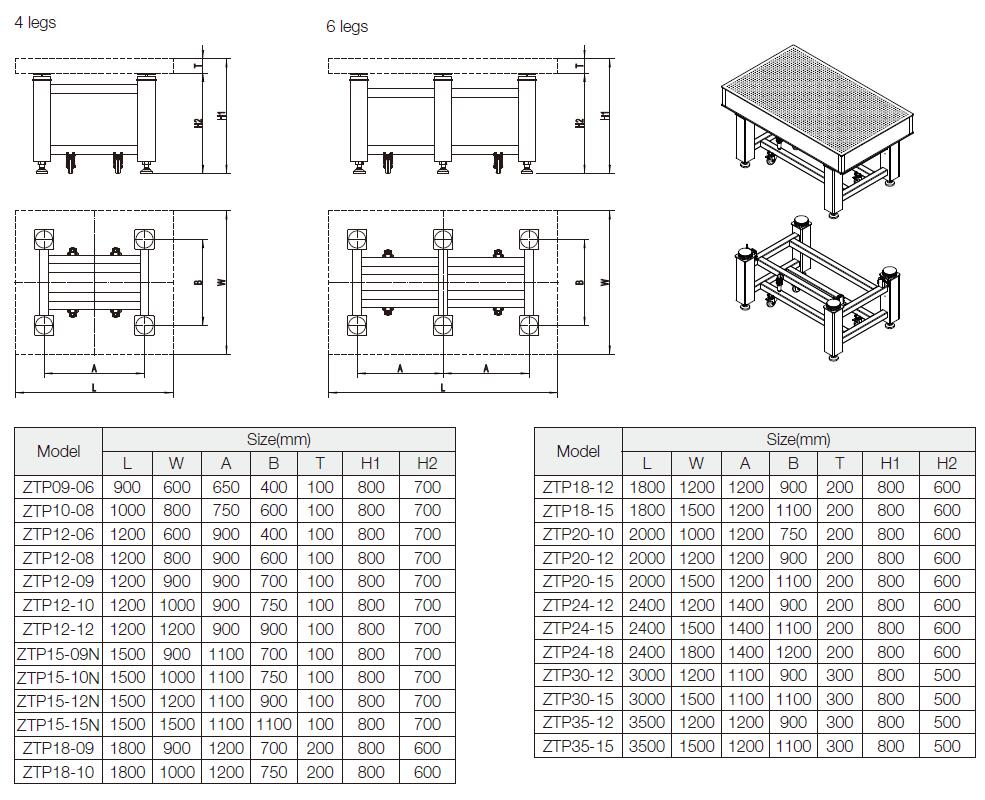

Drawing：
