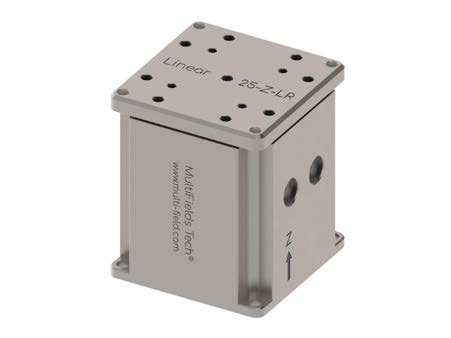

Low Temperature · Piezoelectric Linear 25-z-LR Series Motion Stage

• Compact design, dimensions: 25*25*29.6 mm

• Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK

• Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field

• High loads & high thrusts: 300 g & 3 N

• Long travel range: 6 mm

• Closed-loop control with position sensing up to 0.1 um resolution

Inquiry

Details&Spec

Details

High-load linear stage with closed-loop control

Low Temperature · Piezoelectric Linear 25-z-LR Series Motion Stage Features

• Compact design, dimensions: 25*25*29.6 mm

• Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK

• Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field

• High loads & high thrusts: 300 g & 3 N

• Long travel range: 6 mm

• Closed-loop control with position sensing up to 0.1 um resolution

Dimension drawing

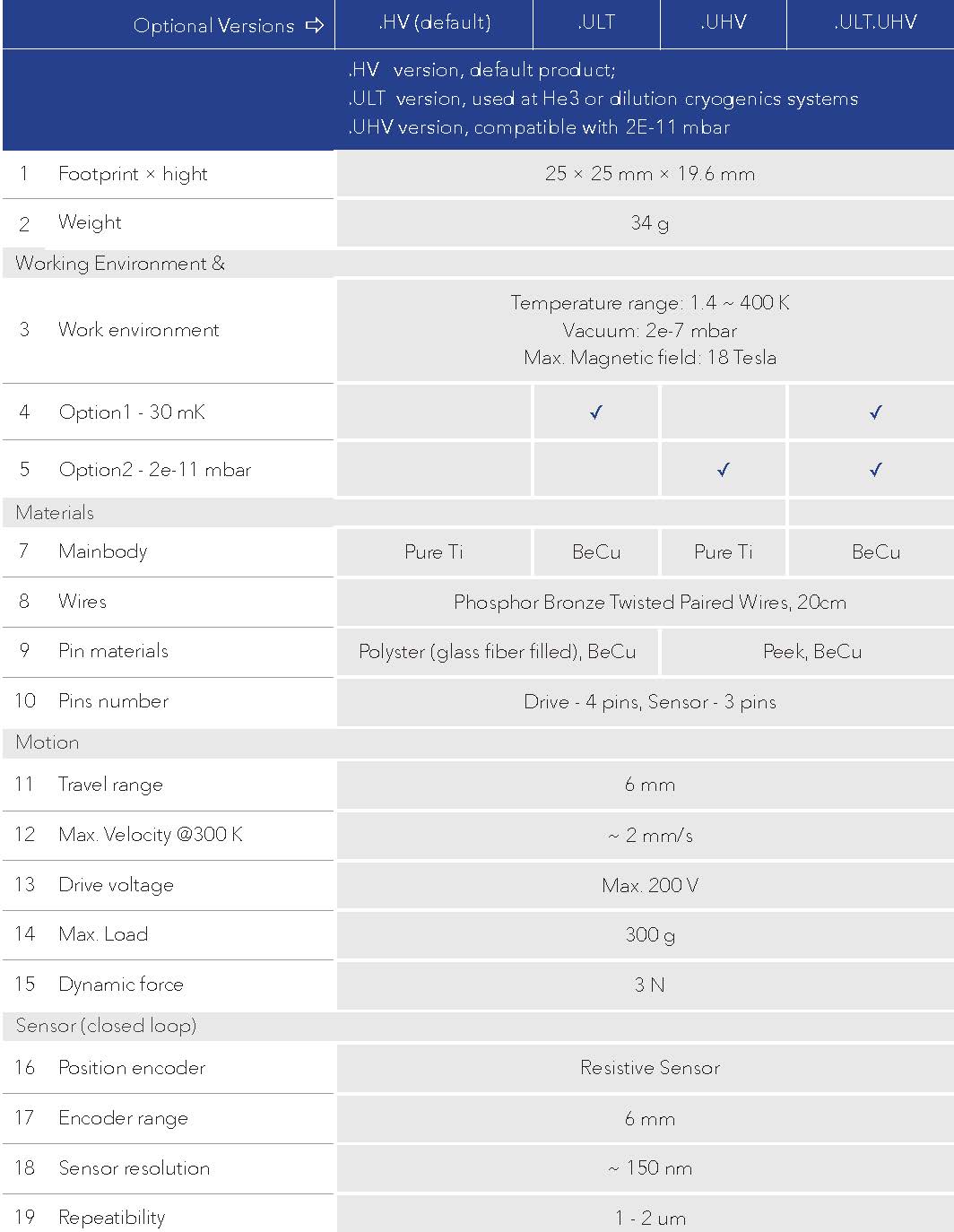

Linear25-z-LR, Specification

*All data below is measured with 50 ohm wires. Though there is no requirement on wires’ conductance, we recommend resistance below 50 ohm.
