Stepper Motor ,High-Precision Linear Stages,Application for Labs

Details&Spec

Details

Model:KSAXXX-11/12-X
Stepper Motor ,High-Precision Linear Stages,Application for Labs

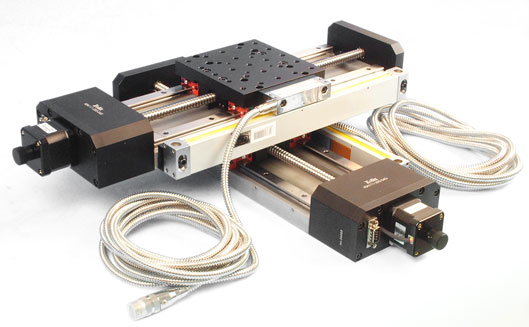

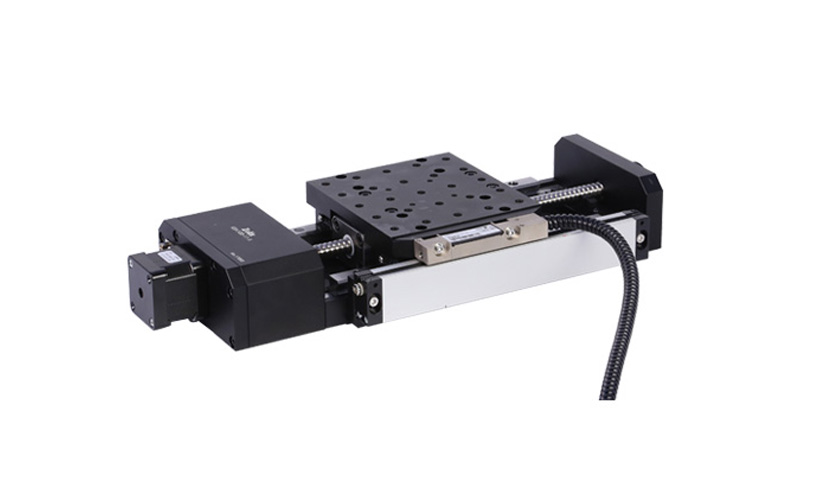

KSA xxx-11/12 series high-precision motorized translation stages has adopted new structure and crafts ;.Application for motion fields which needs high linearity.For example :femetosecond laser experiment, laser processing,three-dimensional scanning measured system and so on.

Grating Diagram

Motor Diagram

Related Products		Application
	MC6003P Controller

Model	KSA050-11/12-X	KSA100-11/12-X	KSA150-11/12-X	KSA200-11/12-X	KSA300-11/12-X	KSA400-11/12-X
Price(USD)	1667	1833	2000	2167	2333	2500
Travel Range(mm)	50	100	150	200	300	400
Screw Pitch(mm)	4					5
Closed-loop Resolution(μm)	1
Resolution(μm)	2.5					3.125
Max Speed(mm/sec)	40					50
Repeatability(μm)	<3
Backlash (μm)	<5
Yaw (″)	<15			<20	<25	<30
Pitch (″)	<15			<25	<30	<40
Straightness(μm)	<10			<12	<15	<20
Parallism (μm)	<10			<12	<15	<20
Stepper Motor(angle)	42 (1.8°）				57 (1.8°）
Current(A)	1.7				2.4
Load Capacity(kg)	30				50
