Home > Products > Manual Positioners > Linear Stages > Crossed-Roller Bearing Linear Stage ,13mm Travel,Sensitivity 1um

NFP-1461

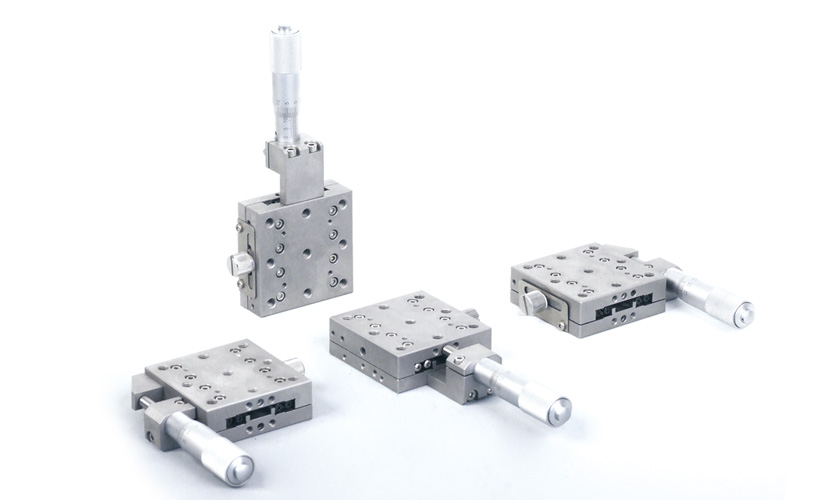

Crossed-Roller Bearing Linear Stage ,13mm Travel,Sensitivity 1um

Inquiry

Details&Spec

Details

Model:NFP-1461
Crossed-Roller Bearing Linear Stage ,13mm Travel,Sensitivity 1um

Model	NFP-1461C	NFP-1461CZ	NFP-1461SR	NFP-1461SL
Price(USD)	308
Travel Range(mm)	13
Sensitivity (mm)	<0.001
Table Size (mm)	40x40
Bearings	Crossed-Roller Bearing
Straightness (μm)	<3
Drive Position	Center	Used in vertical	Right	Left
Load Capacity(Kg)	5	1.5	5	5
