Home > Products > Mirror Mount&Accessories > Kinematic Mirror Mount > Precision Center Mirror Mount,12.7mm to 50.8mm Diameter, 3 Knob Adjustment

OMHS

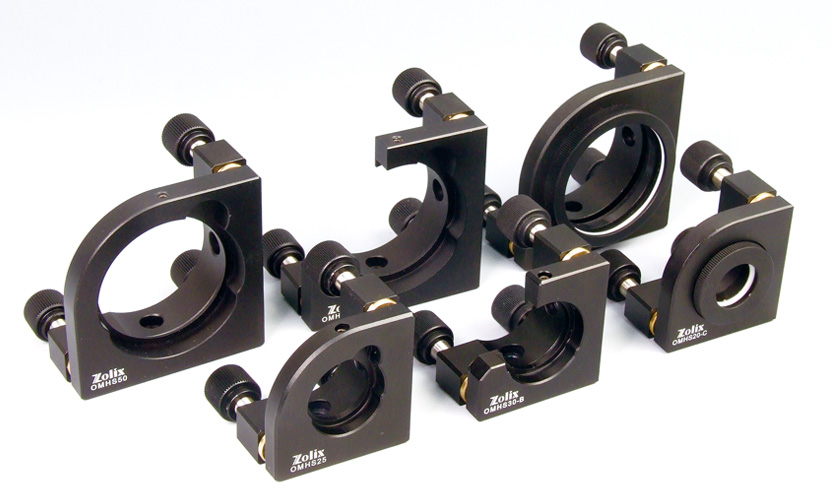

Precision Center Mirror Mount,12.7mm to 50.8mm Diameter, 3 Knob Adjustment

Inquiry

Details&Spec

Details

Model: OMHS
Precision Center Mirror Mount,12.7mm to 50.8mm Diameter, 3 Knob Adjustment

Model	OMHS12.7	OMHS20	OMHS25	OMHS30	OMHS38.1	OMHS50
Price(USD)	42	42	42	42	52	52
Optic Diameter A (mm)	12.7	20	25/25.4	30	38.1	50/50.8
Counterbore B(mm)	11	18	22	27	35	47
Angular Range(°)	±3
Tx travel(mm)	6

Model: OMHS-B
Precision Clear Edge Mirror Mount, 12.7mm to 50.8mm Diameter, 3 Knob Adjustment

Model	OMHS12.7-B	OMHS20-B	OMHS25-B	OMHS30-B	OMHS38.1-B	OMHS50-B
Price(USD)	42	42	42	42	52	52
Optic Diameter A (mm)	12.7	20	25/25.4	30	38.1	50/50.8
Counterbore B(mm)	11	18	22	27	35	47
Angular Range(degree)	±3
Tx travel(mm)	6

Model : OMHS-S
Precision Center Mirror Mount,12.7mm to 50.8mm Diameter, 3 Locking Knob Adjustment

Model	OMHS12.7-S	OMHS20-S	OMHS25-S	OMHS30-S	OMHS38.1-S	OMHS50-S
Price(USD)	45	45	45	45	45	45
Optic Diameter A (mm)	12.7	20	25/25.4	30	38.1	50/50.8
Counterbore B(mm)	11	18	22	27	35	47
Angular Range(degree)	±3
Tx travel(mm)	6

Model : OMHS-BS
Precision Clear Edge Mirror Mount, 12.7mm to 50.8mm Diameter, 3 Locking Knob Adjustment

Model	OMHS12.7-BS	OMHS20-BS	OMHS25-BS	OMHS30-BS	OMHS38.1-BS	OMHS50-BS
Optic Diameter A (mm)	12.7	20	25/25.4	30	38.1	50/50.8
Counterbore B(mm)	11	18	22	27	35	47
Angular Range(degree)	±3
Tx travel(mm)	6

Model: OMHS-C
Precision Center Mirror Mount,12.7mm to 50.8mm Diameter, 3 Knob Adjustment

Model	OMHS12.7-C		OMHS20-C	OMHS25-C	OMHS25.4-C		OMHS30-C
Price(USD)	45		45	45	45		45
OPtic Diameter A (mm)	12.7		20	25	25.4		30
Counterbore B(mm)	11		18	23	23		28
Angular Range(degree)	±3
Center Height(mm)	25						27.5
Front panle width(mm)	55						55
Total (mm)	53						58
Tx travel	6
Model		OMRS38.1-C		OMRS50-C		OMRS50.8-C
Price(USD)
Optic Diameter A (mm)		38.1		50		50.8
Counterbore B(mm)		35		47		47
Angular Range(degree)		±3
Tx travel (mm)		6

Model: OMHS-CS
Precision Center Mirror Mount,12.7mm to 50.8mm Diameter, 3 Locking Knob Adjustment

Model	OMHS12.7-CS		OMHS20-CS	OMHS25-CS	OMHS25.4-CS		OMHS30-CS
Diameter A (mm)	12.7		20	25	25.4		30
Counterbore B(mm)	11		18	23	23		28
Angle range(degree)	±3
Center height(mm)	25						27.5
Front panle width(mm)	55						55
Total (mm)	53						58
Tx travel	6
Model		OMRS38.1-CS		OMRS50-CS		OMRS50.8-CS
Price(USD)		55		57		57
Diameter A (mm)		38.1		50		50.8
Counterbore B(mm)		35		47		47
Angle range(degree)		±3
Tx travel (mm)		6

Application


Lock Knob		Screw Lock

Mount is designed with OMHS
